HT SERIES – Multifunction horizontal lathes

SAFOP stands out in the production of CNC horizontal lathes, designed for precise, reliable machining and increased productivity. Tailor-made solutions to meet the different needs of a wide range of industrial sectors.

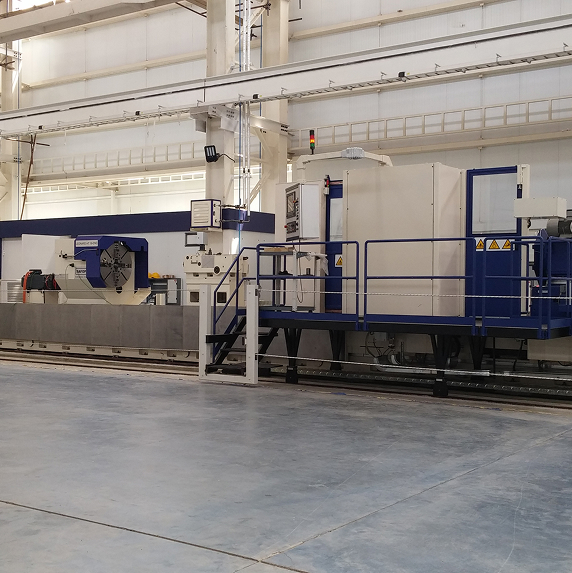

SERIE HT 18

This machine is designed to perform turning, boring, and both internal and external grinding operations. It features hydrostatic guideways to ensure high precision and accuracy in machining. HT 18 lathes are used in industrial sectors for machining large shafts and cylinders. An example of components that can be produced with this machine includes press and mixing screws.

TECHNICAL DATA	UNIT	L. HT 18
Swing over the cross slide	mm	1800
Number of bed ways	n°	4
Maximum load between centres	tons	30
Torque admitted by spindle	Nm	20000
Power	kW	100
Speed range	nr.	2
C-Axis with twin drive	--	--
Quill diameter	mm	300

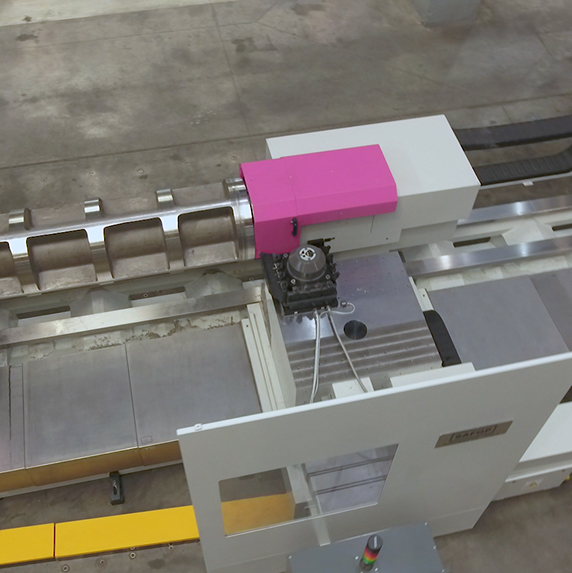

HT 12 Series

This machine is designed to perform turning, boring, both internal and external grinding, and drilling operations. The robustness and design of the lathe ensure machining accuracy over long periods of operation. An example of components that can be produced with this machine includes pump shafts for industrial pumps.

MAIN SPECIFICATION	UNITà	HT 12
Distance between center	mm	TBD
Turning diameter	mm	1200
Max weight between centers	Tons	12
Width of bed	mm	1400
Spindle diameter at front bearing	mm	240
Spindle hole	mm	100
Headstock spindle speeds	RPM	0-800
Power of the main A.C. motor	kW	60
Headstock torque	Nm	14000
Diameter of the quill	mm	230
