Drilling Machines

Designed to perform complex machining on industrial components and cylinders, deep hole drilling lathes ensure high performance and efficiency. They are used in the paper and mechanical industries.

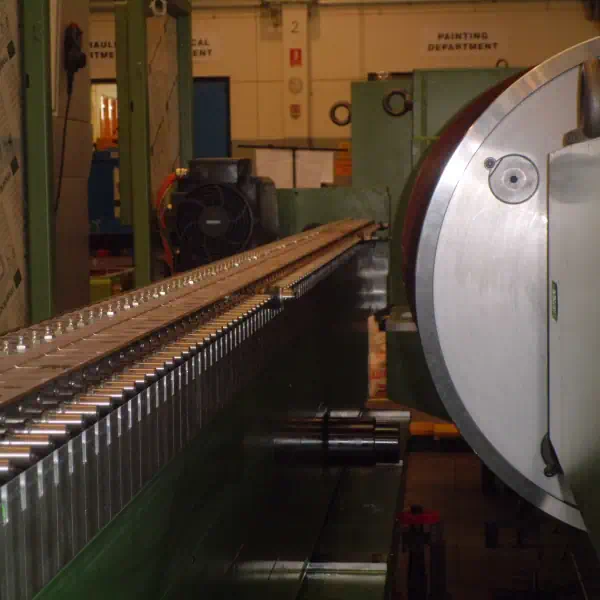

Drill Matic series

All structural components are made of high-quality cast iron, giving the structure both weight and rigidity. The machine features a dual-bed configuration to eliminate any interference between the drilling headstock carriage and the dividing head, tailstock, or any steady rests.

This type of machine tool is equipped with a customizable number of drilling heads, usually between 140 and 240, connected by a gear transmission system that enables simultaneous machining along the required length of the workpiece. The minimum distance between two adjacent drilling heads is 35.712 mm, which can be increased according to specific operational requirements.

Machine capacity

Maximum rolls diamete	mm	2,000
Minimum rolls diameter	mm	350
Maximum load on steady rests	tons.	50
Maximum length of rolls, including necks	mm	12,000
Max. table length of roll to be drilled with pitch of 35.712 mm
* single positioning	mm	8,535
* two positioning	mm	11,070

Headstock Unit with “C” axis

Spindle nose	ASA	11"
External diameter of the 4 jaws chuck, cast iron body	mm	700
O. D. clamping capacity	mm	150÷580
I. D. clamping capacity	mm	500÷700
Torque of the A.C. digital servo motor (∆T=100 K)	Nm	95
Indexing accuracy	degree	±0.002
Spindle speed	giri/min	1
Stroke of the headstock unit on the cross direction	mm	825
Positioning on the cross direction		manual
Stroke of the headstock basement on the bed	mm	2,000
Positioning on the longitudinal direction		manual

Tailstock

Flange on rotating bush of tailstock	ASA	11"
Diameter of the quill	mm	200
Travel of the quill	mm	300
Stroke of the tailstock unit on the cross direction	mm	825
Positioning on the cross direction		manual
Positioning on the vertical direction		manual
Longitudinal positioning of tailstock basement on bed		manual

Beds

Width of drilling carriage bed	ASA	1,000
Width of bed for the tailstock, steady rests	mm	1,000

Carriage unit

Power of the motor	kW	1.5
Power feed	mm/1'	1,600

Drilling slide

Total maximum number of drilling heads in aluminium mounted on drilling slide with 35,712 mm pitch	n°	240
Torque of the A.C. digital servo motor (∆T=60 K) for the Z-axis (cross movement)	Nm	27
Infinitely variable power feed for the Z-axis	mm/1'	5-2,900
Maximum adjustable drilling depth	mm	0-150
Stroke of "Z" axis	mm	170
Stroke of "X" axis	mm	170
Z-axis through two identical ball screws, diameter	mm	80
Torque of the A.C. digital servo motor (∆T=60 K) for the X-axis (longitudinal movement)	Nm	27
Infinitely variable power feed for the X-axis	mm/1'	0-330
X-axis through one ball screw, diameter	mm	63
Number of digital motors to drive the drilling heads	n°	2
Power of each A. C. motor to drive the drilling heads	kW	28
Diameter of the splined shaft	mm	38

Drilling heads

Minimum distance between two adjacent drilling heads (*)	mm	35.712
One spindle speed of drilling heads, continuously variable	rpm	50/1,800
Maximum diameter of drills for rubber	mm	8
Maximum diameter of drills for countersinking	mm	10.5
